Thank you CMC Enthusiasts and collectors, for your patience. The CMC Ferrari 275, which has been in development since 2018, is finally ready.

The model has been on a bumpy development journey for over three years. One of the most time-consuming part was the repeated revision of the body lines, which was done by 4 engineers consecutively to reach a conclusive configuration in 2021. In addition to this, we dealt with some details over and over again, and we sought to use the best materials, and sound processes to replicate these details in a safe and reliable manner. We hope to present an intricately-crafted and exquisitely made scale auto to you and live up to your expectations. Let’s recall some of our endeavours and share them with you.

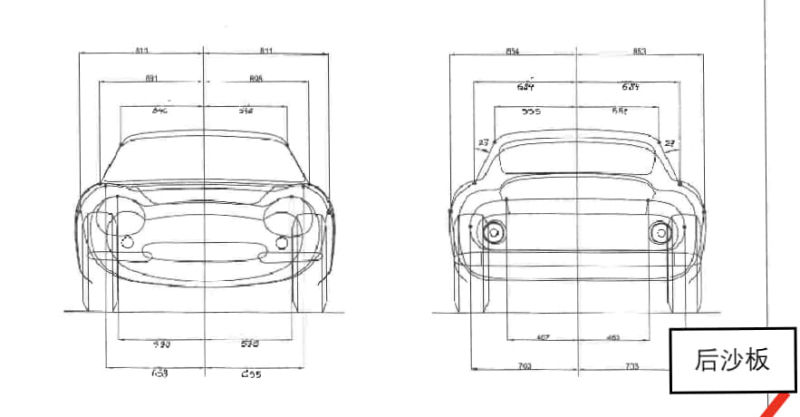

Body lines, as the most important part of a replica, must capture the charm of the real car. Elegant curves are undoubtedly the biggest challenge for the designer and technical processing. It is true that the design was based on digital scanning. However, the lines of the prototype generated by 3D printing subsequently were never perfect. In our case, we felt that the lines were not soft and graceful enough, especially in the rear-end of the car, and their biggest defect consisted in a lack of signature voluptuousness. The modification of the rear-end of the car went through the hands of 3 or 4 engineers.

You may ask, “Isn’t the scan data accurate? ”

Yes, the accuracy of a digital scanning should be 80% or above, but the ascending curves of the windbreaker of the car were hard to trace precisely from the photos and scans. It requires an experienced designer to study multiple photos from different angles and consult many sources of information to integrate his impressions into a reasonable approximation. This is followed by repeated modifications until a best approximation is achieved. The process of achieving this can be difficult to communicate effectively. In addition to the photos and digital scanning, we also collected other information, and it was not until 2021 that we finalized the shape after repeated modifications and assessments.
After the body lines and configuration were determined, there were still many hurdles to overcome for the implementation of the blueprints in technical processing and production. When it was impossible to cast the curves of the front and the back parts of the car in one piece because of technical restrictions, for instance, we applied the method of “splicing”. This involves splicing the body with two castings that are joined in secure and perfect alignment. Screws were used in the process so as to ensure durability; screw heads were grinded and polished until they levelled off with the body surface. Then, seams were filled with paddings, which were polished to become a part of one smooth body surface with other parts. This was followed by the hand-painting process to finish the complete circle. The “splicing” process is a “laborious and costly approach”. But for the sake of seeking authenticity, we are willing to do whatever it takes to approximate it. CMC has acquired a set of relatively mature “splicing” experiences.

The ridges on the left and right front sand-fenders are one of the characteristic features of this car. In order to replicate these ridges, we modified the design and tooling three times. After looking at the first 3D prototype, we found that the ridges were not apparent enough. The follow-up processes of polishing, sanding, and painting were likely to eliminate whatever traces these ridges still had. This is why after the tooling was completed in 2021, two more revisions were made on the mould.

The door handles of this car are of a distinctive shape. We chose to incorporate their unique shape into our replication rather than treat these locks as if they were of a common lot.

We demand authenticity. The door handles of the car feature a broad and hunch-backed head and a receding end curving towards the door. Processing this shape is not easy, for it is unique and streamlined three-dimensionally. Initially, we considered using plastic parts because plastics can easily be moulded to meet the delicate requirements, and it is not difficult to mount plastic handles on the door, either. But we gave up the idea because plastic parts were cheap and brittle. Next, we dismissed the use of alloy. Although alloy parts could be cast fully shaped at one go, and assembly was simple and easy, they were bulky, not delicate and beautiful to look at. Then, we experimented with a corrosion sheet, which was metal, but too flat to be three-dimensional.

Finally, we decided to use stainless steel and have it pressed and shaped into the door handles we desired.

How to install the handle of stainless steel to the door? And how to secure the installation? We didn’t dare to use glue bonding. What we did was to weld a column-shaped assembly tack to the back of the handle’s head, and the tack went through a hole in the door to have its end firmly secured on the inner side of the door. In this way, no matter how hard one pulled, the door handle would not come off.

The street-car version does not have wired-spokes wheels but alloy-cast wheels. Three sets of tooling have been made for this type of wheel so far. The wheels from the first set of moulds were used on the prototype models for the 2021 CIIE. A question was immediately raised about the design of these wheels by both German and American colleagues. But since the design was based on the digital scanning of a vintage car, how could there be a problem? Moreover, the model was already set for trial production in 2021. Therefore, things were stressful for us all. We made haste to gather a lot of additional information about the car, review the photos from all angles, and discover that the outer rim of the wheel had to be enlarged and the center at the core cover should be raised. After revising the blueprint, we had a second set of moulds made. However, the improvement still fell short. Although the production line was waiting for this new model to be launched, and although time was ticking away, we still took time to modify the design and had a third set of moulds made. This time, the 3D-printed samples were satisfactory to everyone.

Attached are photos from left to right: the wheels coming out of the first and second set of moulds, and the last one is the wheel from the third set of moulds.) We tracked down the cause of our errors. While the wheel design grew out of a digital scanning and hard-copy data, these sources of information were still insufficient and might mislead people. Only careful, conscientious observation and multiple references can ensure the maximum restoration of the truth.

All racing versions are equipped with spoked wheels. Each racing car has 5 wheels (including a spare one in the trunk.).  Wheels are each composed of a rim, a hub, sixty nipples, one valve core, sixty spokes, a tire, and a hub cover decorated with the Ferrari prancing horse, totalling 126 single parts for each wheel and 630 parts for a single model.

When you open the hood, the first thing you see are two rows of carburetors outlets. Their bell-mouth openings, which neatly face in one direction, are also one of the characteristic features of this car. We envisioned that the carburetors of a new car should be all shiny, delicate and lovely, so great efforts were made to present them in such away. At first, we used stainless steel tubes, but when the tube was stretched to expand its opening, the edge burst. To avoid edge-bursting, we switched to brass tube, red copper tube, and finally 304 seamless rust-resistant steel tube. In expanding a 3.2mm-diameter steel tube, we found its bell-mouth opening was not very impressive, and it looked even smaller after the tube was made to bend its head down. We went on to enlarge the diameter to 3.6 mm, 3.8 mm, and even 4.0 mm. Finally, we settled for 3.8 mm. To prevent bursting during reaming, we introduced heat treatment to increase the ductility of the material. The seamless steel tube had a thin wall. After its opening was expanded to the maximum, the edge was as sharp as that of a knife. To prevent it from cutting fingers, we found a new technology that helped blunt edges while enhancing metallic sheen. To ensure that once installed, the carburetor outlets wouldn’t fall off due to the impact of transportation that could be rough, we went back to review the outlet base and modify its mould again. Finally, our replica got equipped with a set of intricate, shiny, rust-free, safe and secure carburetor outlets.  Designer’s label on the side of the car.

Beneath the louvres of each side, the car body is decorated with a modest plague. Small as it is, we were not going to neglect it in our replication. We first opted for plastic parts, the advantages of which were easy to install and low cost. The disadvantage was that it would not look sophisticated. Next, we tried stainless steel corrosion sheet, which was thin, but too thin to stand out three-dimensionally. Finally, we settled for stainless steel labels. The letters on it were cut by laser, using a fine engraving approach to ensure font clarity. Once polished, the plague shined with its original sheen of stainless steel. Finally, to ensure that the plague be securely mounted, we welded an assembly tack to the back of the label, which went through the body shell to get secured inside. Only by so doing, was the job accomplished to our satisfaction. Looking back at the history of CMC, more and more sheet metal parts have been incorporated into the manufacturing of our recent models, a trend that is going against the reduction of production costs.  We attached a sample of the “ Designer’s Label which we took from production for you. For the lower skirt on both sides of the body, we have finished the tooling for using plastic parts at first, which was easy and inexpensive. After the mould was completed, we were not satisfied with the test fitting ourselves. Although the plastic parts after plating were also shiny, the brightness of plastic electroplating and stainless steel looked different. Stainless steel, after being polished, presented natural original colour, but the plastic electroplating showed unreal brightness. After consideration, we still decided to give up the plastic parts and choose polished workpiece after stainless steel punching and forming. Although material prices and processing costs rose, our ideal effect was achieved.  These are the endeavours we made in the development of this model. In the face of challenges, we always adhere to the following principle: Opt for superior materials, high-standard technology, and safe and reliable processes in production. We do our best to perfect each car model.

We know that regretfully this model is somehow imperfect and leaves room for improvement. For example, the alignment of window framings constitutes quite a problem for us! Back in the early development, the stainless-steel framings adopted were relatively wide and thick, not delicate enough to look at. Later, after a few modifications of the design, they became fine and beautiful, but the narrow and thin metal strips are easily deformed and difficult to install. It has been challenging to find ways to mount them and stay aligned properly. This is only one example of how CMC has endeavoured to better itself. In fact, we are always in the process of striving for perfection.
